The Original Oxybenzone Research Paper
INDEX
I. Oxybenzone Structure / Characteristics
a. Properties
b. Prevalence
c. How it works
II. Effects Overview
a. Endocrine Disruptor
b. Affects Everything and everyone
c. Ubiquitous toxicant
i. Absorbed in skin
ii. Found in 97% of Americans
d. Photo-Allergen
e. Photo-toxicant (especially UV)
III. The Flow of Oxybenzone
a. Manufactured for mainly sunscreen products
b. Consumption / Human Application
c. A) factory runoff B) Your runoff in ocean or shower
d. WWTP
e. Back into water system
f. Fish
g. Humans
h. THE CLOSED LOOP
i. BIOACCUMULATION
j. BIOMAGNIFICATION

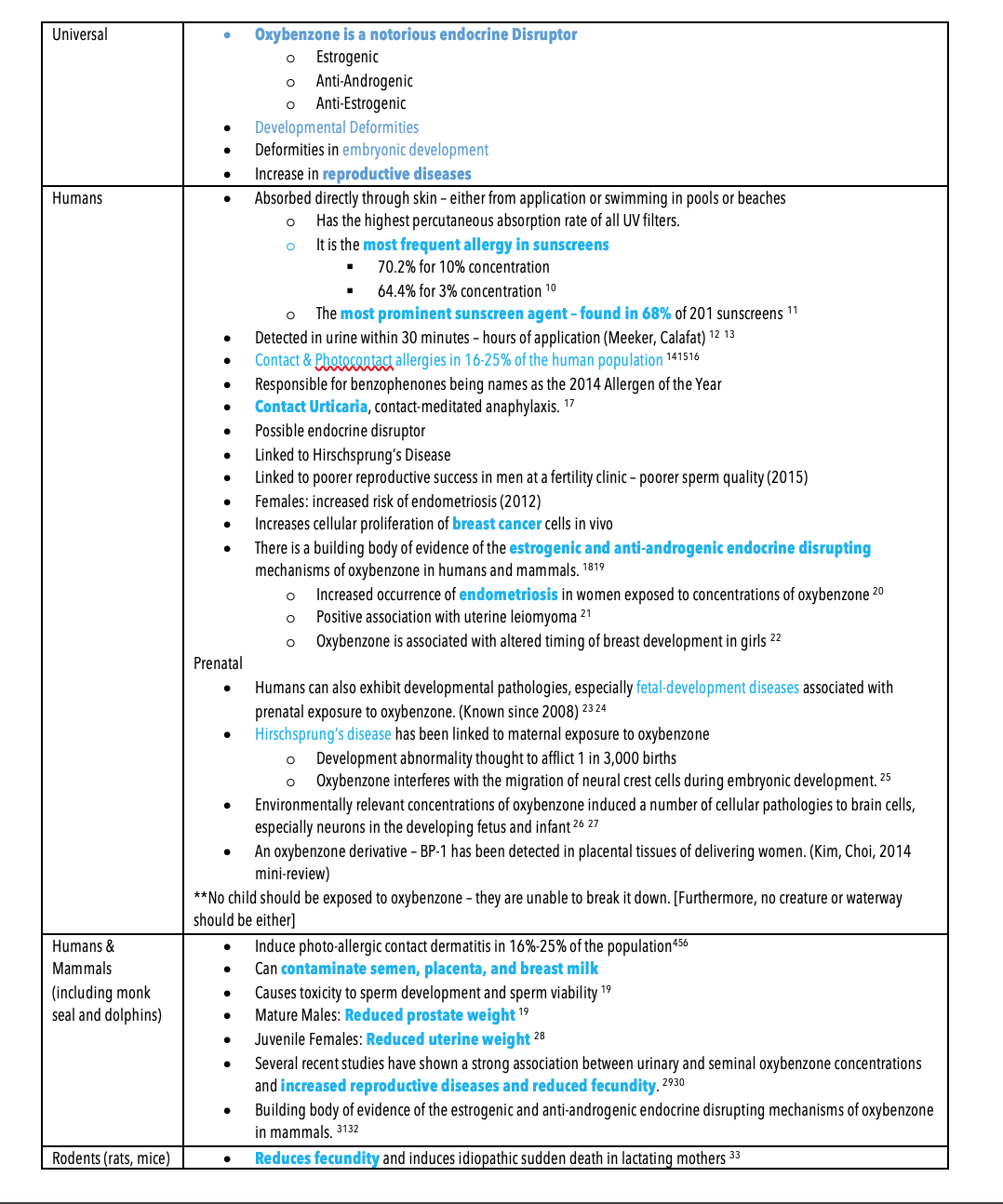

IV. Oxybenzone Effects by Category
a. Universal
b. Humans
c. Mammals (ex dolphin)
d. Marine vertebrates (ex fish)
e. Marine invertebrates (ex sea urchin)
f. Coral
g. Algae
V. Oxybenzone Toxicity Levels
a. Observed Concentrations
VI. Toxic By-Products
a. BP-1
b. Reaction with Chlorine
VIII. Relative to PABA
IV. Safe Alternatives
a. Non-nano Zinc oxide & Titanium dioxide
b. The relative efficacy vs toxicity of oxybenzone
V. Conclusions
Oxybenzone Overview
Ubiquitous environmental contaminant
Insoluble in water
Photostable
Bioaccumulative
Rapidly absorbed via oral and dermal routes
Found in 97% of Americans
Phototoxic
ENDOCRINE DISRUPTOR - mimics the hormone estrogen
Uses: primarily sunscreen; volumes up to 10%
Oxybenzone is a notorious endocrine disruptor, voraciously spreading toxicity throughout waterways of the world.
THE PROBLEM:
OXYBENZONE IS BECOMING MORE HEAVILY USED, AND MORE HEAVILY TOXIC TO ENVIRONMENT AND US.
Oxybenzone is in nearly every waterway and in nearly everyone and it’s toxic to nearly everything it touches.
For over a decade, oxybenzone has been proven to be toxic to humans, corals, and other marine life, yet companies continue to put it in more than 3,500 skincare products worldwide. [i]
SUNSCREEN USE IS INCREASING, LEVELS OF OXYBENZONE ALONG WITH IT. WE NEED TO STOP THIS TOXICITY FROM DISRUPTING EVERYTHING
Oxybenzone, also known as benzophenone-3 (BP-3), is an aromatic hydrocarbon most commonly used as a chemical UV absorber in sunscreens (has been available since the 1980’s).
Zhao H, Wei D, Li M, Du Y (2013) Substituent contribution to the genotoxicity of benzophenone-type UV filters. Ecotoxicol Environ Saf 95:241–246
Oxybenzone Overview
Peak absorption:
Short-wave UVB (290-320 nm) &
Short-wave UVA (320-340 nm)
Levels of use permitted in sunscreens:
Up to 6% in US
Up to 10% in EU and elsewhere
Up to 0.5% in personal care products
Molecular weight: 228.26 Daltons (<500 Daltons is the general contact allergen weight) [i]
INSOLUBLE IN WATER + VERY PHOTO STABLE
= BAD COMBINATION
1990: Added to the High Production Volume Challenge Program for manufacturing in or importing to the US chemicals more than 1 million pounds per year
Insoluble in Water
Very Photostable
[i] Bos JD, Meinardi MMHM. The 500 Dalton rule for the skin penetration
of chemical compounds and drugs. Exp Dermatol. 2000;9:165-169.
“(Kim, Choi) : “BP-3 is lipophilic, photostable, and bioaccumulative, and can be rapidly absorbed via oral and dermal routes.” ”
USES
Widely Incorporated Into:
· Makeups
· Sunscreens
· Lip balms
· Hair products
· Plastics
· Textiles
· Added to some perfumes for its rose-like scent
Other Names / Trade Names:
· Benzophenone-3 (BP-3)
· 2-hydroxy-4-methoxy-benzophenone
· 2-benzoyl-5-methoxyphenol
· Eusolex 4360
· Escalol 567
· Cyasorb UV9
Where Might It Be Found?
· Sunscreen
· Moisturizer, cream, lotion
· Bath or body oil
· Shampoo, conditioner
· Hair gel, mousse, hair spray
· After-shave
· Make-up foundation, concealer
· Lipstick, lip gloss
· Nail polish
· Perfume, cologne
Some Industrial Uses of Oxybenzone:
· Color preserver in paints and varnishes
· Color retainer in fluorescent lacquers
· Protection against fading in textiles and plastics
· Color preserver in dental composite fillings
· Product for drug, dye, pesticide manufacture
“• “Oxybenzone is a photo-toxicant; adverse effects are exacerbated in the light. Whether in darkness or light, oxybenzone transformed planulae from a motile state to a deformed, sessile condition.” 4 ”
· “Oxybenzone is a photo-toxicant; adverse effects are exacerbated in the light. Whether in darkness or light, oxybenzone transformed planulae from a motile state to a deformed, sessile condition.” 4
· Oxybenzone is both bioaccumulated and biomagnified [i] [ii]
[i] Haereticus
Oxybenzone Unsuitable For Children 2006
Kim S, Choi K. Occurrences, toxicities, and ecological risks of ben- zophenone-3, a common component of organic sunscreen products: a mini-review. Environ Int. 2014;70:143-157 )
[ii] Gago-Ferrero et al (2012) An overview of UV-absorbing compounds (organic UV filters) in aquatic biota. Anal Bioanal Chem 404:2597-2610.
Universal Toxicity
· Universal toxicant – found everywhere – cannot be broken down by wastewater treatment or by living organisms (including us) – bioaccumulated and biomagnified.
· Developmental deformities
· Endocrine disruption
· Feminization
· Deformities in embryonic development of fish, sea urchins, coral, shrimp.
· Increase in reproductive diseases in marine invertebrate species (sea urchins), vertebrate species (fish like wrasses, eels, parrotfish), and mammals (like Hawaiian monk seal).
Toxic To:
· Humans
· Corals
· Fish
· Larvae
· Bird Eggs
· Marine Mammals
Oxybenzone threatens coral and the 25% of marine species that depend on coral.
Furthermore, it infects and bleaches them at temperatures lower than 87.9 F – the temperature it is considered “warming”
And threatens their ability to recover after climate change
Entering the Environment
UV filters have been found in water sources worldwide, with oxybenzone noted as the most frequently detected and in the largest concentrations. [i]
2 major sources of oxybenzone:
human recreational activities and
wastewater treatment plant (WWTP) effluents.
· *Oxybenzone cannot be broken down! Waste Water Treatment Plants (WWTPs) cannot remove oxybenzone!
· Point and non-point sewage and treated wastewater effluent discharges are the largest source of contamination.
o Sewage contamination – unable to remove oxybenzone via wastewater treatment.
o Discharged to ground and surface waters from cesspools, leaking septic systems, and municipal wastewater collection and treatment systems.
· Through wastewater effluent
o Produced by swimmers and municipal, residential, and boat/ship wastewater discharges 4
· Directly from swimmers wearing sunscreen (Gonzalez - around 4% of oxybenzone is absorbed percutaneously (under the skin), and the remaining 96% washes off into our waterways. (ex – shower – still goes to ocean)
[i] Cuderman P, Heath E. Dermination of UV filters and antimicrobial agents in environmental water samples. Anal Bioanal Chem. 2007,387(4):1343-1350.
In 1990, Oxybenzone added to the Environmental Protection Agency High Production Volume Challenge Program, which identifies ingredient manufactured or imported into the United States in amounts greater than one million pounds per year [i]
[i] DiNardo JC, Downs CA. Dermatological and environmental toxicological impact of the sunscreen ingredient oxybenzone/benzophenone-3. Journal of Cosmetic Dermatology. 2018; 17:15-19.
The Flow Of Oxybenzone
Production —> Human Use —> Sewage / Wastewater Treatment —> Back into Ocean —> Into Fish —> Back into our mouths via dinner
Found In
EVERYWHERE
· Ubiquitous phototoxicant – doesn’t break down – remains and travels up food chain.
· Swimming pools, hot tubs (very high concentrations)
o ALERT: OXYBENZONE REACTS WITH CHLORINE to produce far more toxic byproducts
· Water, soil, sediments, sludge, biota
· Streams
· Rivers
· Lakes
· Ocean
· Marine environments from the Arctic Circle (Barrow, Alaska) to the beaches and reefs along the equator.
· Drinking water (municipal treated and desalinated)
· *Near universal presence in humans (96.8%)
o Has the highest percutaneous absorption of all UV filters
o CDC Fourth National Report on Human Exposure – 96.8% people had it present in their urine.
· Urine
· Breast milk
· Beaches
· Waterways
· Marine mammals
· Bird eggs
· Fish, Fish Lipid, Fish Liver
· Coral
o Estimated 8,000 to 16,000 TONS of sunscreens enter coral reefs each year [i]
The Closed Loop
Humans —> Waterways —> Fish —> Humans
Absorbed by the skin —> excreted by urine (4%) —> enters the plumbing —> enters the water supply
What is not absorbed by the skin: washed off either in natural water sources or in shower —> all enter the water supply
Manufacturing and waste run-off produced from factories also places UV filters in the water supply.
Sewage is the biggest source of sunscreen UV filters anywhere. (Downs)
WASTEWATER TREATMENT PLANTS (WWTPS)
WWTPs are critical in the water recycling process. Water utilized by humans passes through these facilities for treatment before reentering rivers and streams.
Higher population density usually = higher levels of oxybenzone
WWTPs worldwide have been tested for UV filters in the influent (incoming water sources) and effluent (water that has been treated).
Waste Water Treatment Plants cannot filter oxybenzone, so it comes back to us via the fish we eat in the food chain.
THE ACCUMULATION OF OXYBENZONE
[Touches us (human runoff), becomes toxic to us, —>
gets into everything else (waterways, etc), —>
becomes toxic to everything else
*CLOSED LOOP
Travels up the food chain back to us
14,000 TONS of sunscreen enters the waters around our reefs every year
MORE OXYBENZONE IS FOUND…
Concentrations increase with heavier population densities and heavy tourist sites.
BIOACCUMULATION
BIOMAGNIFICATION
EFFECTS
OXYBENZONE IS A PHOTOALLERGEN [i]
*Exacerbated in heat and doesn’t break down.
In-vitro, oxybenzone has anti-androgenic and pro- and anti-estrogenic effects (Kim)
[Androgen: male sex hormone. // Estrogen: female sex hormone]
Oxybenzone Ecotoxicology
Oxybenzone and many of its metabolites are documented mutagens, especially when exposed to sunlight 26,27,28,29,30.
They can cause genotoxicity either from induction of photooxidative stress or adduction to DNA directly through bio-activation by cytochrome P450 enzymes 31,32,33.
Oxybenzone and other benzophenones can induce procarcinogenic activities by inducing cell proliferation in cancer cells lines that are receptive to estrogenic compounds 34,35,36.
[i] European Commission Health & Consumer Protection Directorate General. Opinion on benzophenone-3. COLIPA N° S38. 19 December 2006. Opinion adopted by the SCCP during the 10th plenary of 19 December 2006
Recent studies have also documented that oxybenzone increases metastasis potential (cellular proliferation and migration) via a nonestrogenic mechanism 37,38.
Oxybenzone is a photo-toxicant, especially in the presence of ultraviolet light.
This means that the greater the light intensity, especially in the UV and near-UV spectrum, new forms of toxicity manifest, and usually in a dose-dependent manner of both oxybenzone and light.
Oxybenzone is a photo-toxicant – adverse effects are exacerbated in light
(Kim, Choi) BP-3 is transformed into 3 major metabolites:
1. Benzophenone-1 (BP-1)
a. Longer half-life than BP-3 and exhibits greater estrogenic potency
2. Benzophenone-8 (BP-8)
3. 2,3,4-trihydroxybenzophenone (THB)
ENDOCRINE DISRUPTION
OXYBENZONE IS A NOTORIOUS ENDOCRINE DISRUPTOR
What is endocrine disruption?
Based on a receptor binding assay, BP-3 has shown strong anti-androgenic and weak estrogenic activities as well as anti-estrogenic activity. (Kim, Choi 2014) ^ ;;;
Predicted no effect concentration (PNEC) for BP-3 was derived at 1.32 ug/L.
- The levels observed in ambient water are generally lower than PNEC, but
- In wastewater influents, hazard quotients (HQs) greater than 1 were noted.
Oxybenzone and Humans – A Clearer Picture
REACTIVITY
- Reactions in 16-25% of patients
OXYBENZONE AND OUR ENVIRONMENT
OXYBENZONE AND CHLORINE
Key point: you’re not looking for the levels needed for fully bleaching coral – even threatening them is enough.
WE HAVE BETTER ALTERNATIVES.
Major effects on coral
90% of snorkeling/diving sites occur on 10% of the world’s reefs.
(4 major effects according to [i]
· Increased susceptibility to bleaching
· DNA damage
· Abnormal skeleton growth (via endocrine disruption)
· Gross deformities of baby coral
This means 10% of global reefs and 40% of coastal reefs are at risk of bleaching.
Increased rates of bleaching are completely correlated with increased rates of oxybenzone. —> CAUSATION.
Even at the lowest concentrations (10 parts per billion)
· Viruses released
· In light: oxybenzone caused injury directly to zooxanthellae
· In dark: coral digests zooxanthellae
Results to Coral (based on Archives of Environmental Contamination and Toxicology (4))
· Planulae exhibited an increasing rate of coral bleaching in response to increasing concentrations of oxybenzone.
· Oxybenzone is a genotoxicant to corals, exhibiting a positive relationship between DNA-AP lesions and increasing oxybenzone concentrations.
· Oxybenzone is a skeletal endocrine disruptor; it induced ossification of the planula, encasing the entire planula in its own skeleton.
[i] https://oceanservice.noaa.gov/news/nov15/sunscreen-corals.html
[Olympic swimming pool holds
2.5 million liters of water]
* Trunk Bay
· Minimum of 2,000 swimmers per day (up to 5,000, but we’ll be conservative)
· Assuming 36 grams of sunscreen every 2 hours (or calculating for twice as many people with 1 application) for a 4 hour visit = 72 grams per person per visit
· This means 72 grams x 2,000 people = 144 kilograms of sunscreen into Trunk Bay on an average day
· Assuming an average 8% oxybenzone concentration in sunscreens, that means 144 kg * 0.08 = 8.6 kg oxybenzone into Trunk Bay on an average day
· = 260 kg oxybenzone per month (570 pounds per month)
· = 3,139 kilograms of oxybenzone per year or 6,920 pounds per year.
· For 3 sample sites, levels of oxybenzone found were:
o 1,395 pp billion
o 580 pp billion
o 98 pp billion (farther from beach)
“Oxybenzone and/or its metabolite 4-methylbenzophenone may be more ubiquitous than generally thought (e.g., not just in sunscreens, cosmetics, and fragrances). The International Agency for Research on Cancer has identified several sources of dietary exposure to these molecules in food or addition to food as a flavoring agent, its presence in drinking water as a contaminant, and through its migration from food packaging, printing inks, or recycled paperboard.”
WHAT TO USE INSTEAD
THERE ARE FAR BETTER ALTERNATIVES
Oxybenzone: Attenuation in NM: 290-370
Peak absorption: 290-300 and 325-340
UVB: Test on 10 human subjects
UVA: Analytic (in vitro) à must have critical wavelengths > 370 nm (represents 90% of total area under the curve in UV region)
Only 5 Ingredients Qualify:
1. Zinc oxide
2. Titanium Dioxide
3. Avobenzone
4. Oxybenzone (tied for last)
5. Octocrylene
Average annual adults treated for skin cancer
2002-2006: 3.4 million people Annual cost $3.6 billion
2007-2011: 4.9 million people Annual cost $8.1 billion (126.2% increase)
THE SUNSCREEN ARGUMENT
PABA
- Reactivity rates vs paba
Key Note: Compared to PABA which was BANNED so quickly (much less harmful than oxybenzone)
THERE IS NO REASON TO CONTINUE TO USE OXYBENZONE.
YOU ARE JUST NEGLIGENT AT THAT POINT
REFERENCES
[1] NOAA – Sunscreen, Corals https://oceanservice.noaa.gov/news/nov15/sunscreen-corals.html
Zhao H, Wei D, Li M, Du Y (2013) Substituent contribution to the genotoxicity of benzophenone-type UV filters. Ecotoxicol Environ Saf 95:241–246
[1] Bos JD, Meinardi MMHM. The 500 Dalton rule for the skin penetration
of chemical compounds and drugs. Exp Dermatol. 2000;9:165-169.
[1] Oxybenzone Contact Allergan Sheet
[1] Haereticus
Oxybenzone Unsuitable For Children 2006
Kim S, Choi K. Occurrences, toxicities, and ecological risks of ben- zophenone-3, a common component of organic sunscreen products: a mini-review. Environ Int. 2014;70:143-157 )
[1] Gago-Ferrero et al (2012) An overview of UV-absorbing compounds (organic UV filters) in aquatic biota. Anal Bioanal Chem 404:2597-2610.
[1] Cuderman P, Heath E. Dermination of UV filters and antimicrobial agents in environmental water samples. Anal Bioanal Chem. 2007,387(4):1343-1350.
[1] DiNardo JC, Downs CA. Dermatological and environmental toxicological impact of the sunscreen ingredient oxybenzone/benzophenone-3. Journal of Cosmetic Derrmatology. 2018; 17:15-19.
[1]
[1] European Commission Health & Consumer Protection Directorate General. Opinion on benzophenone-3. COLIPA N° S38. 19 December 2006. Opinion adopted by the SCCP during the 10th plenary of 19 December 2006
[1] Warshaw EM, Wang MZ, Maibach HI, et al. Patch test reactions associated with sunscreen products and the importance of testing to an expanded series: retrospective analysis of North American Contact Dermatitis Group data, 2001 to 2010. Dermatitis. 2013;24:176-182
[1] Heurung AR, Raju SI, Warshaw EM. Contact allergen of the year - Benzophenones. Dermatitis. 2014;25:3-10
[1] Wang & Kannan. Characteristic profiles of benzophenone-3 and its derivatives in urine of children and adults from the United States and China. Environ Sci Technol. 47: 12532-13538.
[1] Calafat et al (2008) Concentrations of the sunscreen agent benzophenone-3 in residents of the United States: National Health and Nutrition Examination Survey 2003-2004. Environ Health Perspect 116:893-897.
[1] Szczurko et al (1994) Photocontact allergy to oxybenzone: ten years of experience. Photodermatol Photoimmunol Photomed 10:144-147.
[1] Langan and Collins (2006) Photocontact allergy to oxybenzone and contact allergy to lignocaine and prilocaine. Contact Dermatitis 54:174-174.
[1] Chuah et al (2013) Photopatch testing in Asians: a 5-year experience in Singapore. Photodermatol Photoimmunol Photomed 29:116-120.
[1] Verhulst L, Goossens A. Contact dermatitis cosmetic components
causing contact urticaria: a review and update. Contact Dermatitis.
2016;75:333-344
[1] Watanabe et al (2015) Metabolism of UV filter benzophenone-3 by rate and human liver microsomes and its effect on endocrine disrupting activity.
[1] Krause et al (2012) Sunscreens: are they beneficial for health? An overview of endocrine disrupting properties of UV filters. Int K Androl 35:424-436.
[1] Kunisue et al (2014) Urinary concentrations of benzophenone-type UV filters in U.S. women and their association with endometriosis. Environ Sci Technol 46:4624-4632.
[1] Pollack et al (2015) Bisphenol A, benzophenone-type ultraviolet filters, and phthalates in relation to uterine leiomyoma. Environ Res. DOI: 10.1016/j.envres.2014.06.028.
[1] Wolff et al (2015) Environmental phenols and pubertal development in girls. Environ Intl 84:174-180
[1] Wolff et al (2008) Prenatal phenol and phthalate exposures and birth outcomes. Environ Health Perspec 116:1092-1097.
[1] Tang et al (2013) Associations of prenatal exposure to phenols with borth outcomes. Environ Pollut 178:115-120.
[1] Huo et al (2016) The relationship between prenatal exposure to BP-3 and Hirschspring’s disease. Chemosphere 144:1091-1097.
[1] Wnuk et al (2017) Benzophenone-3 impairs autophagy, alters epigenetic status, and disrupts retinoid X receptor signaling in apoptotic neuronal cells. Molecular Neurobiology. https://doi.org/10.1007/s12035-017-0704-2.
[1] Wnuk et al (2017) Apoptosis Induced by the UV Filter Benzophenone-3 in Mouse Neuronal Cells Is Mediated via Attenuation of Erα/Pparγ and Stimulation of Erβ/Gpr30 Signaling. Molecular Neurobiology. https://doi.org/10.1007/s12035-017-0480-z.
[1] Schlumpf et al (2008) Developmental toxicity of UV filters and environmental exposure: a review. Int J Androl 31:144–151.
[1] Buck Louis et al (2014) Urinary concentrations of benzophenone-type ultraviolet radiation filters and couple’s fecundity. Amer J Epid.
[1] Buck Louis et al (2015) Urinary concentrations of benzophenone-type ultraviolet light filters and semen quality. Fertility and Sterility. 104:989-99
[1] =15 Watanabe et al (2015) Metabolism of UV filter benzophenone-3 by rate and human liver microsomes and its effect on endocrine disrupting activity.
[1] Krause et al (2012) Sunscreens: are they beneficial for health? An overview of endocrine disrupting properties of UV filters. Int K Androl 35:424-436.
[1] Gulati & Mounce (1997) NTP reproductive assessment by continuous breeding study for 2-hydroxy-4-methoxybenzophenone in Swiss CD-1 mice. NTIS# PB91158477. Environ Health Perspect 105(Suppl 1):313–314.
[1] Downs et al (2015) Toxicolopathological effects of the sunscreen UV filter, Oxybenzone (benzophenone-3), on coral planulae and cultured primary cells and its environmental contamination in Hawaii and the U.S. Virgin Islands. Arch Environ Contam Toxicol. DOI 10.1007/s00244-015-0227-7.
[1] Kunz et al (2006) Comparison of in vitro and in vivo estrogenic activity of UV filters in fish. Toxicol Sci 90:349–361.
[1] Kinnberg et al (2015) Endocrine-disrupting effect of the ultraviolet filter benzophenone-3 in zebrafish, Danio rerio. Environ Toxicol Chem 34:2833-2840.
[1] Rodriguez-Fuentes et al (2015) Evaluation of the estrogenic and oxidative stress effects of the UV filter 3-benzophenone in zebrafish (Danio rerio) eleuthero-embryos. Ecotoxicol Environ Safety 115:14-18.
[1] Coronado et al (2008) Estrogenic activity and reproductive effects of the UV-filter oxybenzone (2-hydroxy-4- methoxyphenyl-methanone) in fish. Aquat Toxicol 90:182–187.
[1] Chen et al (2016) UV-filter benzophenone-3 inhibits agonistic behavior in male Siamese fighting fish (Betta splendens). Ecotoxicology 25:302-309.
[1] Mao et al (2017) Effects of benzophenone-3 on the green alga Chlamydomonas reinhardtii and the cyanobacterium Microcystis aeruginosa. Aquatic Toxicology 193:1-8.
[1] https://oceanservice.noaa.gov/news/nov15/sunscreen-corals.html
[1] Hawaii Bill SB 2571
[1] HEAERETICUS
[1] Braush and Rand - Brausch JM, Rand GM. A review of personal care products in the aquatic environment: Environmental concentrations and toxicity. Chemosphere. 2011;82:1518-1532.
[1] Gago-Ferrero et al - Gago-Ferrero P, Diaz-Cruz MS, Barcelo D. An overview of UV- absorbing compounds (organic UV filters) in aquatic biota. Anal Bioanal Chem. 2012;404:2597-2610.
[1] U.S. Department of Health and Human Services Centers for Disease Control and Prevention. Fourth National Report on Human Exposure to Environmental Chemicals, Updated Tables 2017, 1:20. https:// www.cdc.gov/biomonitoring/pdf/Benzophenone-3_FactSheet.pdf. Accessed February 8, 2017.
[1] Meeker JD, Cantonwine DE, Rivera-Gonzalez LO, et al. Distribution, variability, and predictors of urinary concentrations of phenols and parabens among pregnant women in Puerto Rico. Environ Sci Tech- nol. 2013;47:3439-3447
[1] Lassen TH, Frederiksen H, Jensen TK, et al. Temporal variability in urinary excretion of Bisphenol A and seven other phenols in spot, morning, and 24-h urine samples. Environ Res. 2013;126:164-170
